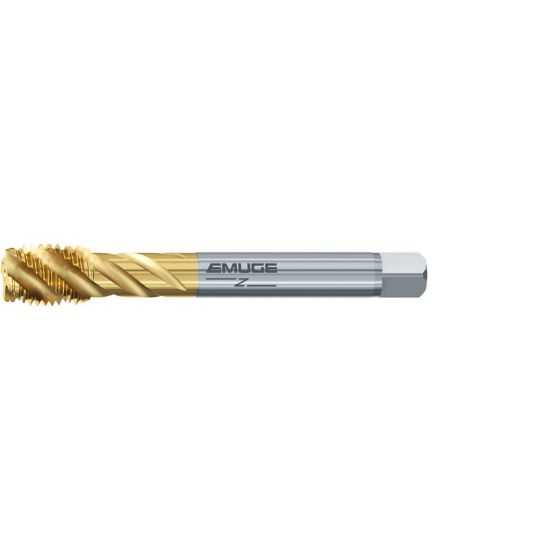

EMUGE CU513700.5052 Tap 1-12.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P HSSE TiN

ISO: CU513700.5052

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU513700.5052
Delivery date: 3-5 days
$305.20

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Bottom Tapping, Tapping
Performance Rating High Performance
Made In USA No
Package Size 1
Coating TiN
Shipping State Massachusetts
Dimensional Specifications
Thread Type NF/UNF/UNEF
Thread Limit 2B
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Shank/Pilot Dia 0.8000 20.32MM
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Thread Size 1"
Dimension Standard DINSI
Machine Side Connection Type Tap Collet
Thread Pitch 12.00TPI
Overall Len 5.5120 140.00MM
Drill Range 0.9134 23.20MM - 0.9350 23.75MM
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Tool Material Steel
Flutes/Inserts 5
Tap Square 0.6000
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Automotive Yes
Medical Yes
Aerospace Yes
Job Shop Yes
