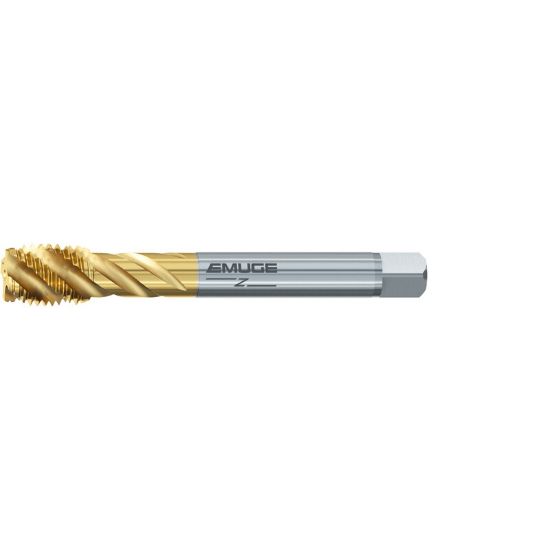

EMUGE CU513700.5049 Tap 5/8-18.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P Carbide HSSE TiN

ISO: CU513700.5049

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU513700.5049
Delivery date: 3-5 days
$160.44

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Massachusetts
Package Size 1
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Coating TiN
Dimensional Specifications
Tool Material Steel
Overall Len 3.9370 100.00MM
Flutes/Inserts 5
Tap Square 0.3600
Flute Direction R - Right
Dimension Standard DINSI
Length Type Standard
Tap Type Bottoming
Thread Pitch 18.00TPI
Shank/Pilot Dia 0.4800 12.19MM
Thread Type NF/UNF/UNEF
Thread Size 5/8"
Thread Limit 2B
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Drill Range 0.5669 14.40MM - 0.5815 14.77MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Medical Yes
