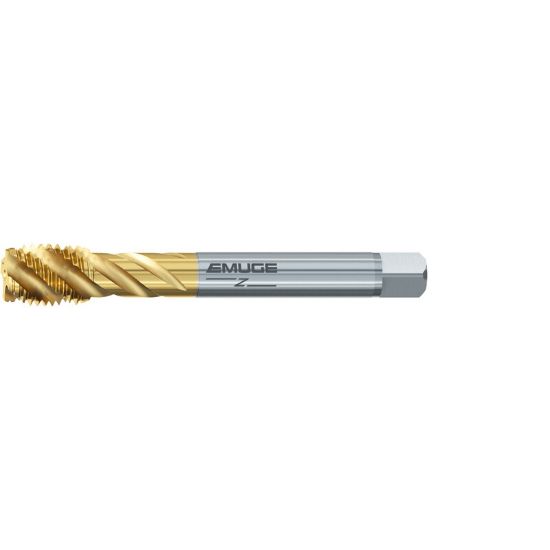

EMUGE CU513700.5048 Tap 9/16-18.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P Carbide HSSE TiN

ISO: CU513700.5048

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU513700.5048
Delivery date: 3-5 days
$142.22

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Tapping, Cut Tapping
Performance Rating High Performance
Coating TiN
Made In USA No
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Type NF/UNF/UNEF
Thread Limit 2B
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Square 0.3220
Tool Material Steel
Shank/Pilot Dia 0.4290 10.90MM
Flutes/Inserts 5
Flute Direction R - Right
Overall Len 3.9370 100.00MM
Length Type Standard
Tap Type Bottoming
Thread Pitch 18.00TPI
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Dimension Standard DINSI
Thread Size 9/16"
Drill Range 0.5047 12.82MM - 0.5189 13.18MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Medical Yes
