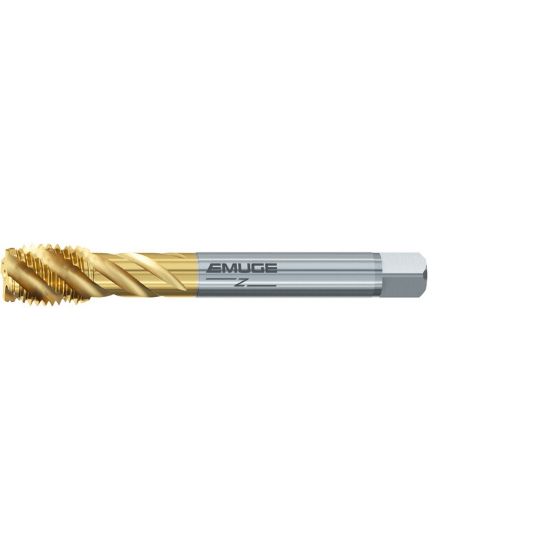

EMUGE CU513700.5047 Tap 1/2-20.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P Carbide HSSE TiN

ISO: CU513700.5047

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU513700.5047
Delivery date: 3-5 days
$104.14

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Made In USA No
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Drill Range 0.4476 11.37MM - 0.4606 11.70MM
Tap Square 0.2750
Flute Direction R - Right
Overall Len 3.9370 100.00MM
Length Type Standard
Tap Type Bottoming
Thread Pitch 20.00TPI
Dimension Standard DINSI
Thread Type NF/UNF/UNEF
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Shank/Pilot Dia 0.3670 9.32MM
Thread Limit 2B
Thread Size 1/2"
Tool Material Steel
Flutes/Inserts 5
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Automotive Yes
Aerospace Yes
Job Shop Yes
Medical Yes
