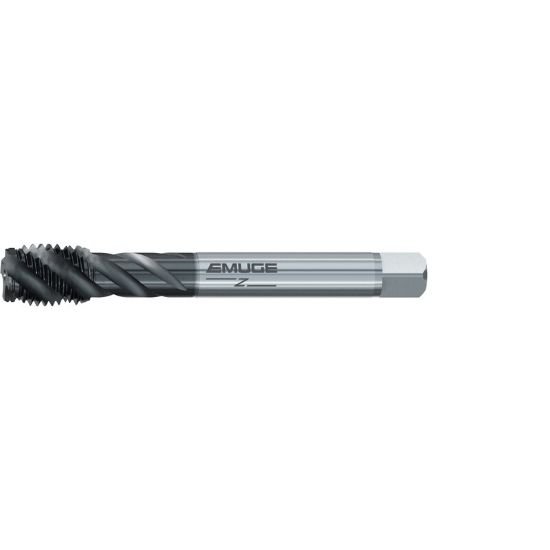

Picture of Emuge CU50C400.5014 Tap 9/16-12.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Cobalt HSSE GLT-1

Emuge CU50C400.5014 Tap 9/16-12.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Cobalt HSSE GLT-1

Part Number: EMUCU50C400.5014 ISO: CU50C400.5014
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1156820
Vendor: Sussex Tool and Supply
$172.81

Description

EMUGE CU50C400.5014 9/16"x12.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE GLT-1 2B NC/UNC Steel GLT-1 - Hard surface coating with anti-friction layer In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating GLT-1
Overall Length 4.3310 110.01MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4290 10.90MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 12.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 9/16"
Thread Limit 2B
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.4756 12.08MM - 0.4972 12.63MM
Tap Square 0.3220
Tap Chamfer 2.0P-3.0P
