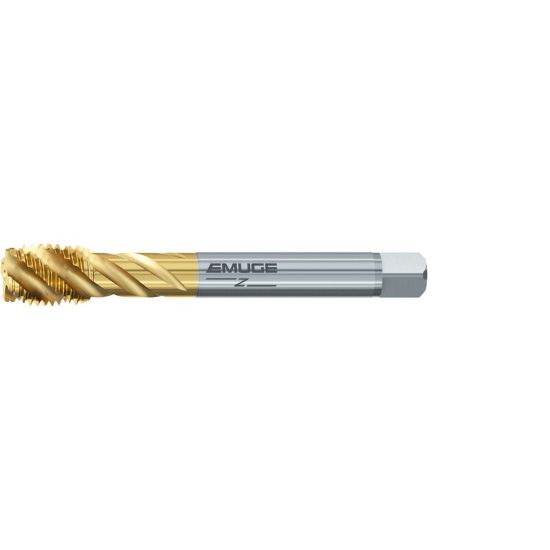

EMUGE CU503700.5053 Tap 1-1/8-12.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE TiN

ISO: CU503700.5053

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU503700.5053
Delivery date: 3-5 days
$411.78

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Coating TiN
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Type NF/UNF/UNEF
Flute Direction R - Right
Length Type Standard
Tool Material Steel
Flutes/Inserts 5
Thread Limit 2B
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Drill Range 1.0445 26.53MM - 1.0598 26.92MM
Tap Square 0.6720
Thread Size 1-1/8"
Thread Pitch 12.00TPI
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DINSI
Shank/Pilot Dia 0.8960 22.76MM
Overall Len 5.9060 150.01MM
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Medical Yes
