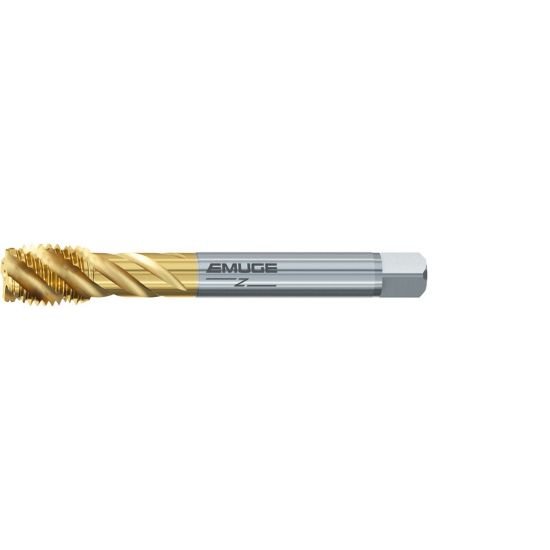

Picture of Emuge CU503700.5247 Tap 1-1/8-8.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE TiN

Emuge CU503700.5247 Tap 1-1/8-8.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE TiN

Part Number: EMUCU503700.5247 ISO: CU503700.5247
Looking for alternatives…
Find a drill for this tap 1-1/8" × 8.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1156565
Vendor: Sussex Tool and Supply
$503.48

Description

EMUGE CU503700.5247 1-1/8"x8.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE TiN 2B NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 7.0870 180.01MM
Shank/Pilot Dia 0.8960 22.76MM
Flutes/Inserts 5
Thread Pitch 8.00TPI
Thread Size 1-1/8"
Tap Drill Range 0.9949 25.27MM - 1.0276 26.10MM
Tap Square 0.6720
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating TIN
Standards & Identification
Dimension Standard DINSI
