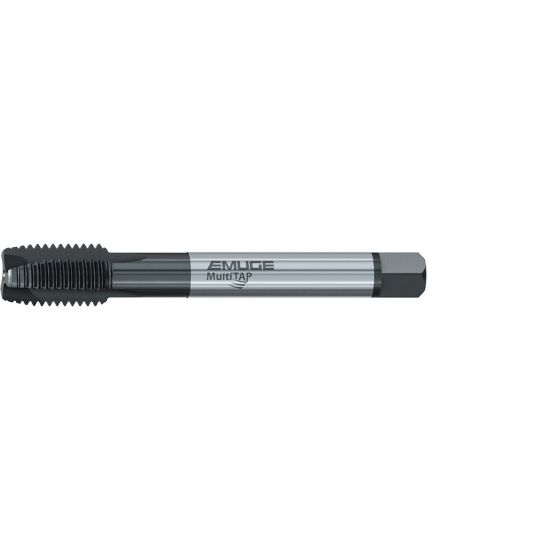

EMUGE CU497300.5051 Tap 7/8-14.00TPI Plug NF/UNF/UNEF DINSI 4P-5P Cobalt HSSE Nitride + Steam Oxide

ISO: CU497300.5051

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU497300.5051
Delivery date: 3-5 days
$135.80

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Coating Nitride + Steam Oxide
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Dimension Standard DINSI
Flutes/Inserts 4
Length Type Standard
Thread Type NF/UNF/UNEF
Tap Square 0.5230
Drill Range 0.8008 20.34MM - 0.8193 20.81MM
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Limit 2B/3B
Flute Direction STRAIGHT
Shank/Pilot Dia 0.6970 17.70MM
Thread Size 7/8"
Thread Pitch 14.00TPI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Tap Type Plug
Tool Material Steel
Overall Len 4.9210 124.99MM
Tap Chamfer 4P-5P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
