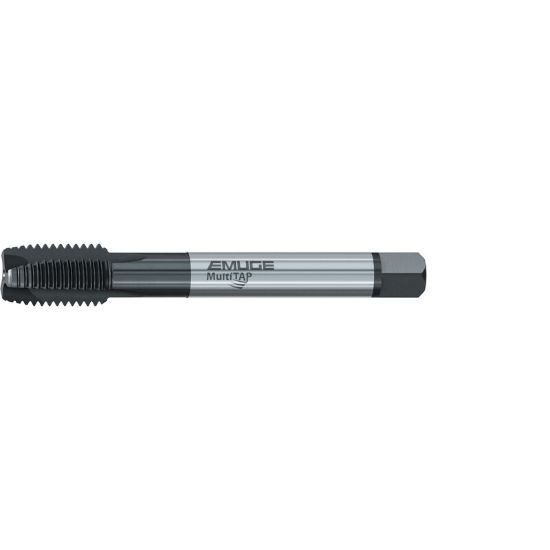

EMUGE CU497300.5050 Tap 3/4-16.00TPI Plug NF/UNF/UNEF DINSI 4P-5P HSSE Nitride + Steam Oxide

ISO: CU497300.5050

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU497300.5050
Delivery date: 3-5 days
$86.23

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA No
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Shipping State Massachusetts
Coating Nitride + Steam Oxide
Dimensional Specifications
Thread Size 3/4"
Overall Len 4.3310 110.01MM
Thread Limit 2B/3B
Dimension Standard DINSI
Flutes/Inserts 4
Length Type Standard
Tap Type Plug
Thread Pitch 16.00TPI
Thread Type NF/UNF/UNEF
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Shank/Pilot Dia 0.5900 14.99MM
Flute Direction STRAIGHT
Tap Style Cut Spiral Point
Machine Side Connection Type Tap Collet
Tap Square 0.4420
Tool Material Steel
Drill Range 0.6850 17.40MM - 0.7012 17.81MM
Tap Chamfer 4P-5P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
