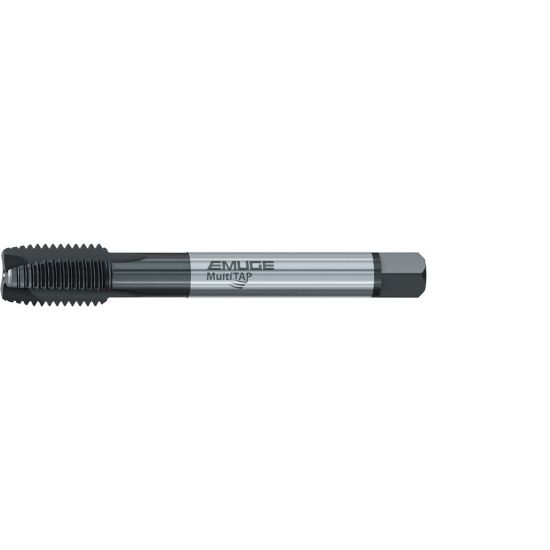

EMUGE CU497300.0124 Tap Plug M24-3.00MM 6H Metric DINSI HSSE Nitride + Steam Oxide

ISO: CU497300.0124

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU497300.0124
Delivery date: 3-5 days
$116.71

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Coating Nitride + Steam Oxide
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Made In USA No
Dimensional Specifications
Flute Direction STRAIGHT
Flutes/Inserts 3
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Thread Limit 6H
Machine Side Connection Type Tap Collet
Overall Len 6.2990 159.99MM
Tap Style Cut Spiral Point
Dimension Standard DINSI
Length Type Standard
Thread Size M24
Thread Pitch 3.00MM
Tool Material Steel
Drill Range 0.8087 20.54MM - 0.8201 20.83MM
Tap Square 0.5700
Tap Chamfer 4P-5P
Thread Type Metric
Shank/Pilot Dia 0.7600 19.30MM
Tap Type Plug
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
