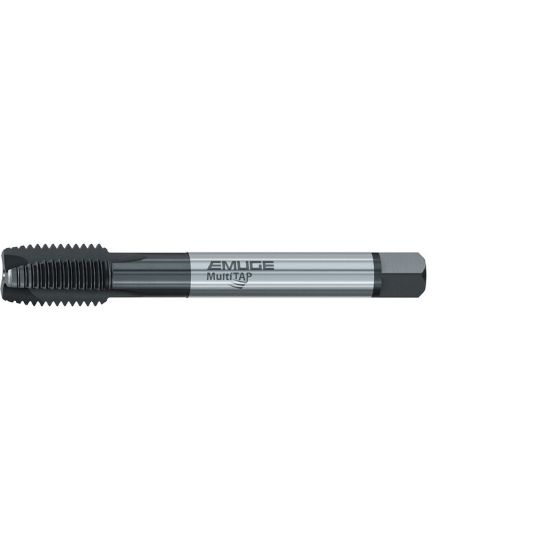

EMUGE CU497300.0118 Tap Plug M18-2.50MM 6H Metric DINSI HSSE Nitride + Steam Oxide

ISO: CU497300.0118

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU497300.0118
Delivery date: 3-5 days
$88.99

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Coating Nitride + Steam Oxide
Application Cut Tapping, Tapping, Plug Tapping, Through Hole Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Made In USA No
Dimensional Specifications
Tool Material Steel
Tap Square 0.4060
Tap Chamfer 4P-5P
Flutes/Inserts 3
Thread Type Metric
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Dimension Standard DINSI
Thread Limit 6H
Thread Size M18
Thread Pitch 2.50MM
Flute Direction STRAIGHT
Shank/Pilot Dia 0.5420 13.77MM
Drill Range 0.6063 15.40MM - 0.6319 16.05MM
Tap Type Plug
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Overall Len 4.9210 124.99MM
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
