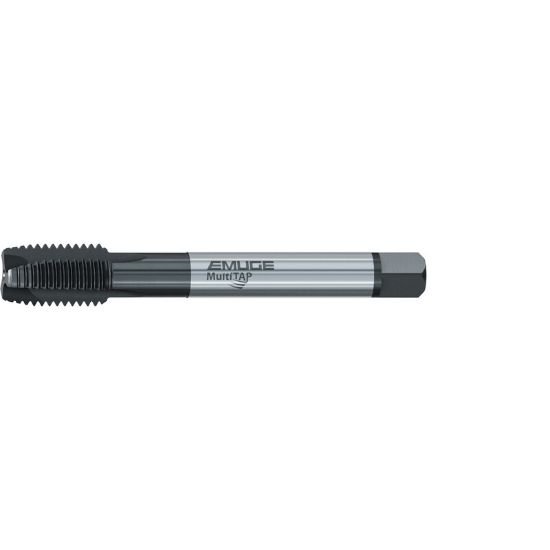

Emuge CU497300.0124 Tap Plug M24-3.00mm 6H Metric DINSI HSSE Nitride + Steam Oxide
Emuge CU497300.0124 Tap Plug M24-3.00mm 6H Metric DINSI HSSE Nitride + Steam Oxide
Part Number: EMUCU497300.0124 ISO: CU497300.0124
Need Assistance or Service? Please call 262-251-4020
Manufacturer:
EMUGE
SKU:
1157499
Vendor:
Sussex Tool and Supply
$118.79
Qty:
Add to cart
Add to My List
Add to compare list
Email a friend
Share This:
EMUGE CU497300.0124 M24x3.00MM Cut Spiral Point Plug 4P-5P HSSE Nitride + Steam Oxide 6H Metric Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name
Attribute value
Shipping State
MASSACHUSETTS
Made In USA
NO
Cutter Type
Tapping
Tool Material
Steel
Cutting Edge Mat
HSSE
Machine Side Connection Type
Tap Collet
Cut Rating
Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Coating
Nitride + Steam Oxide
Overall Length
6.2990 159.99MM
Coolant Thru
Non Coolant
Shank/Pilot Dia
0.7600 19.30MM
Flutes/Inserts
3
Type Of Tool
Tap
Length Type
STANDARD
Performance Rating
High Performance
Thread Pitch
3.00MM
Thread Type
METRIC
Flute Direction
STRAIGHT
Thread Size
M24
Thread Limit
6H
Tap Style
Cut Spiral Point
Tap Type
Plug
Dimension Standard
DINSI
Tap Drill Range
0.8087 20.54MM - 0.8201 20.83MM
Tap Square
0.5700
Tap Chamfer
4P-5P
