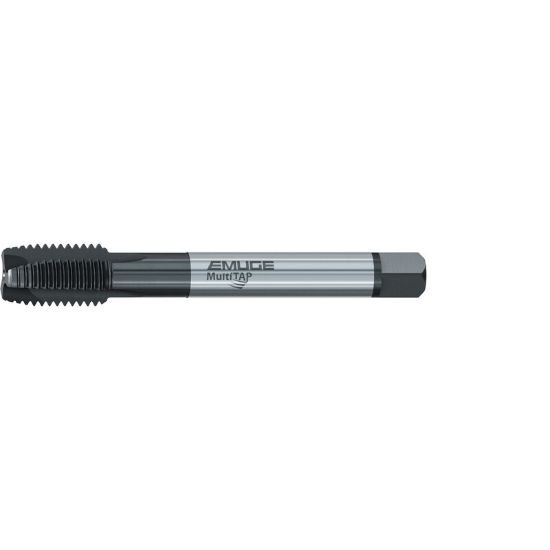

Emuge CU497300.0112 Tap Plug M12-1.75mm 6H Metric DINSI HSSE Nitride + Steam Oxide
Emuge CU497300.0112 Tap Plug M12-1.75mm 6H Metric DINSI HSSE Nitride + Steam Oxide
Part Number: EMUCU497300.0112 ISO: CU497300.0112
Need Assistance or Service? Please call 262-251-4020
Manufacturer:
EMUGE
SKU:
1157495
Vendor:
Sussex Tool and Supply
$34.18
Qty:
Add to cart
Add to My List
Add to compare list
Email a friend
Share This:
EMUGE CU497300.0112 M12x1.75MM Cut Spiral Point Plug 4P-5P HSSE Nitride + Steam Oxide 6H Metric Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name
Attribute value
Shipping State
MASSACHUSETTS
Made In USA
NO
Cutter Type
Tapping
Tool Material
Steel
Cutting Edge Mat
HSSE
Machine Side Connection Type
Tap Collet
Cut Rating
Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Coating
Nitride + Steam Oxide
Overall Length
4.3310 110.01MM
Coolant Thru
Non Coolant
Shank/Pilot Dia
0.3670 9.32MM
Flutes/Inserts
3
Type Of Tool
Tap
Length Type
STANDARD
Performance Rating
High Performance
Thread Pitch
1.75MM
Thread Type
METRIC
Flute Direction
STRAIGHT
Thread Size
M12
Thread Limit
6H
Tap Style
Cut Spiral Point
Tap Type
Plug
Dimension Standard
DINSI
Tap Drill Range
0.4008 10.18MM - 0.4189 10.64MM
Tap Square
0.2750
Tap Chamfer
4P-5P
