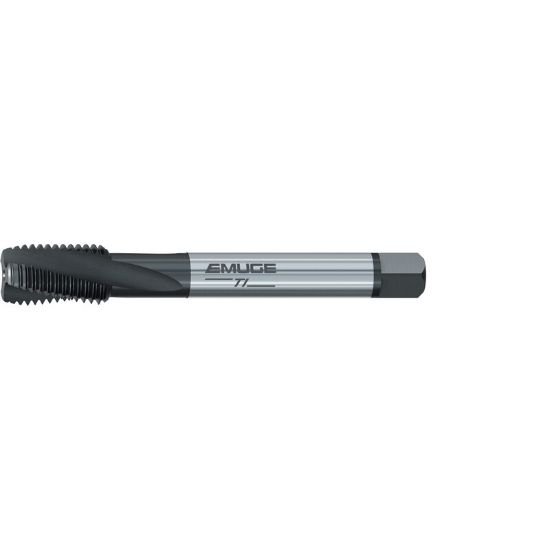

Emuge CU456011.5645 Tap 5/8-18.00TPI Mod Bottom STI-I DINSI 2.0P-3.0P Carbide HSSE Nitride + Steam Oxide

Part Number: EMUCU456011.5645 ISO: CU456011.5645

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1159394
$205.94
EMUGE CU456011.5645 5/8"x18.00TPI STI Mod Bottom 2.0P-3.0P HSSE Nitride + Steam Oxide 3B STI-I Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Coating Nitride + Steam Oxide
Overall Length 4.3310 110.01MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5420 13.77MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 18.00TPI
Thread Type STI-I
Flute Direction RIGHT
Thread Size 5/8"
Thread Limit 3B
Tap Style STI
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.6417 16.30MM
Tap Square 0.4060
Tap Chamfer 2.0P-3.0P
