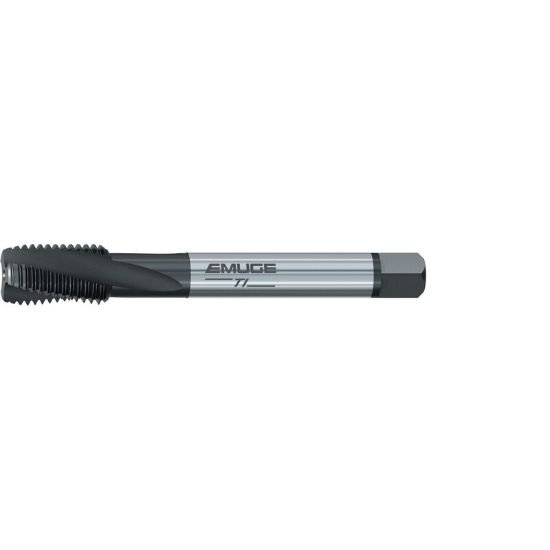

Picture of Emuge CU456011.5641 Tap 3/8-24.00TPI Mod Bottom STI-I DINSI 2.0P-3.0P Cobalt HSSE Nitride + Steam Oxide

Emuge CU456011.5641 Tap 3/8-24.00TPI Mod Bottom STI-I DINSI 2.0P-3.0P Cobalt HSSE Nitride + Steam Oxide

Part Number: EMUCU456011.5641 ISO: CU456011.5641
Tool Cross-Reference
Looking for alternatives…
STI tap drill
3/8" × 24.00TPI — 3/8-24 STI
Drill for: All materials
0.3906" 25/64
207 drills available
See all drills at 0.3906" →

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1159390
Vendor: Sussex Tool and Supply
$99.44

Description

EMUGE CU456011.5641 3/8"x24.00TPI STI Mod Bottom 2.0P-3.0P HSSE Nitride + Steam Oxide 3B STI-I Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type STI-I
Flute Direction RIGHT
Tap Style STI
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.3230 8.20MM - P
Flutes/Inserts 3
Thread Pitch 24.00TPI
Thread Size 3/8"
Tap Drill Range 0.3858 9.80MM
Tap Square 0.2420
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 3B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating Nitride + Steam Oxide
Standards & Identification
Dimension Standard DINSI
