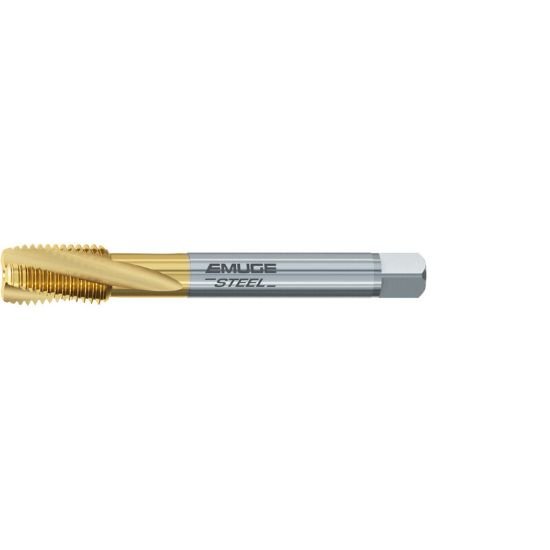

Picture of Emuge CU451400.5012 Tap 7/16-14.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSS HSSE TiN

Emuge CU451400.5012 Tap 7/16-14.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSS HSSE TiN

Part Number: EMUCU451400.5012 ISO: CU451400.5012

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158387
Vendor: Sussex Tool and Supply
$100.85
EMUGE CU451400.5012 7/16"x14.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE TiN 2B NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TIN
Overall Length 3.9370 100.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3230 8.20MM - P
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 14.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 7/16"
Thread Limit 2B
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.3630 9.22MM - 0.3815 9.69MM
Tap Square 0.2420
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
