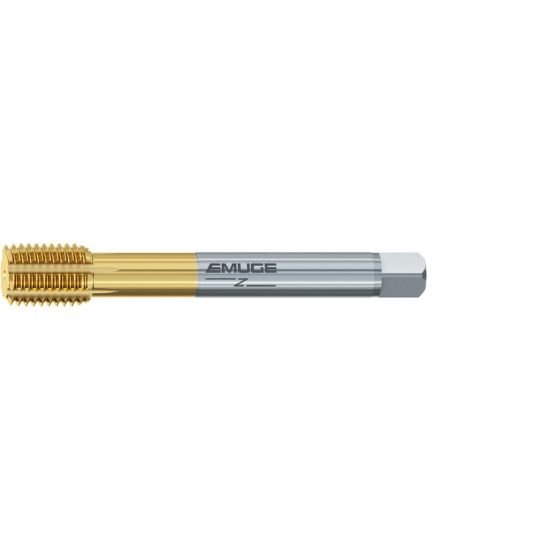

Picture of Emuge CU39Z700.5013 Tap 1/2-13.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P Carbide HSSE-Powder Metal TiN

Emuge CU39Z700.5013 Tap 1/2-13.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P Carbide HSSE-Powder Metal TiN

Part Number: EMUCU39Z700.5013 ISO: CU39Z700.5013

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1156917
Vendor: Sussex Tool and Supply
$121.44
EMUGE CU39Z700.5013 1/2"x13.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-PM TiN 2B NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TIN
Overall Length 4.3310 110.01MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3670 9.32MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 13.00TPI
Thread Type NC/UNC
Flute Direction STRAIGHT
Thread Size 1/2"
Thread Limit 2B
Tap Style Roll Form
Tap Type Bottoming
Dimension Standard DINSI
Tap Drill Range 0.4606 11.70MM - 0.4720 11.99MM
Tap Square 0.2750
Tap Chamfer 1.5P-2.0P
