  • EMUGE CU396A00.5049 Tap 5/8-18.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P Cobalt HSSE-Powder Metal TiN

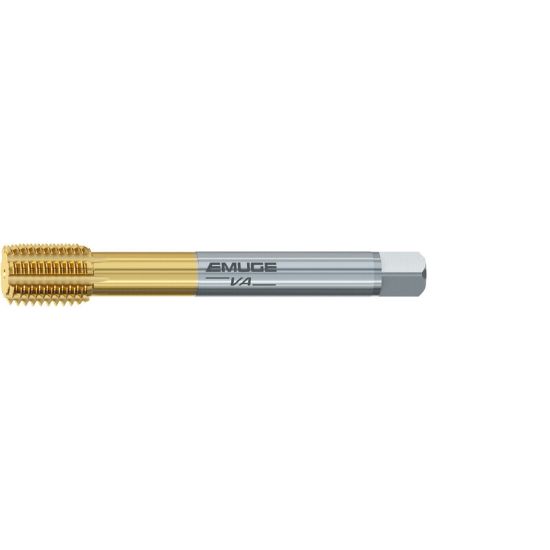

Picture of EMUGE CU396A00.5049 Tap 5/8-18.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P Cobalt HSSE-Powder Metal TiN

EMUGE CU396A00.5049 Tap 5/8-18.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P Cobalt HSSE-Powder Metal TiN

ISO: CU396A00.5049

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU396A00.5049
Delivery date: 3-5 days
$193.26

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Tapping, Blind Hole Tapping, Roll Form Tapping
Performance Rating High Performance
Coating TiN
Made In USA No
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Type NF/UNF/UNEF
Thread Size 5/8"
Thread Limit 2B
Flute Direction STRAIGHT
Machine Side Connection Type Tap Collet
Cut Rating High Temp, Stainless Steel
Tool Material Steel
Tap Square 0.3600
Overall Len 3.9370 100.00MM
Length Type Standard
Tap Type Bottoming
Thread Pitch 18.00TPI
Shank/Pilot Dia 0.4800 12.19MM
Tap Chamfer 1.5P-2.0P
Dimension Standard DINSI
Tap Style Roll Form
Drill Range 0.5965 15.15MM - 0.6039 15.34MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
