  • EMUGE CU396A00.5048 Tap 9/16-18.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P Carbide HSSE-Powder Metal TiN

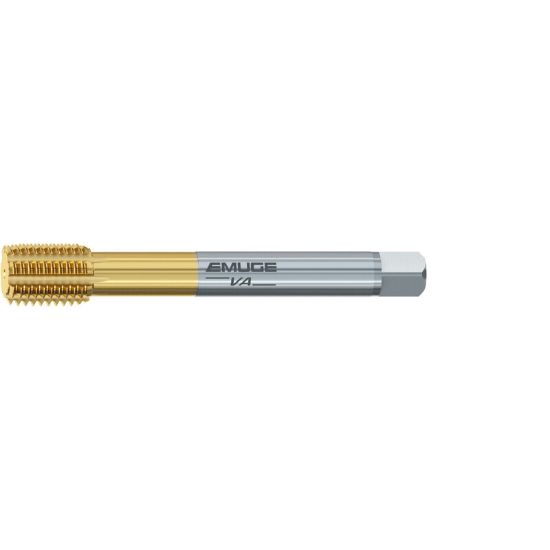

Picture of EMUGE CU396A00.5048 Tap 9/16-18.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P Carbide HSSE-Powder Metal TiN

EMUGE CU396A00.5048 Tap 9/16-18.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P Carbide HSSE-Powder Metal TiN

ISO: CU396A00.5048

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU396A00.5048
Delivery date: 3-5 days
$171.83

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Made In USA No
Application Blind Hole Tapping, Bottom Tapping, Roll Form Tapping, Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tool Material Steel
Overall Len 3.9370 100.00MM
Drill Range 0.5339 13.56MM - 0.5413 13.75MM
Tap Type Bottoming
Dimension Standard DINSI
Length Type Standard
Tap Style Roll Form
Thread Type NF/UNF/UNEF
Thread Limit 2B
Flute Direction STRAIGHT
Tap Square 0.3220
Thread Size 9/16"
Cut Rating High Temp, Stainless Steel
Shank/Pilot Dia 0.4290 10.90MM
Thread Pitch 18.00TPI
Tap Chamfer 1.5P-2.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
