  • EMUGE CU396A00.5047 Tap 1/2-20.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P Carbide HSSE-Powder Metal TiN

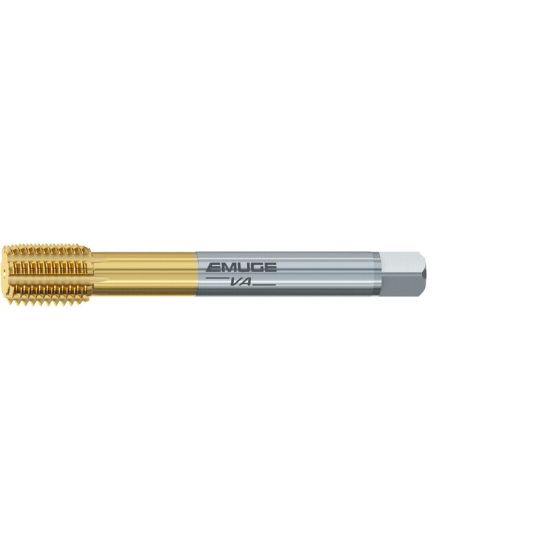

Picture of EMUGE CU396A00.5047 Tap 1/2-20.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P Carbide HSSE-Powder Metal TiN

EMUGE CU396A00.5047 Tap 1/2-20.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P Carbide HSSE-Powder Metal TiN

ISO: CU396A00.5047

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU396A00.5047
Delivery date: 3-5 days
$119.31

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Coating TiN
Application Bottom Tapping, Roll Form Tapping, Tapping, Blind Hole Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Pitch 20.00TPI
Dimension Standard DINSI
Drill Range 0.4744 12.05MM - 0.4811 12.22MM
Length Type Standard
Tap Style Roll Form
Tap Type Bottoming
Flute Direction STRAIGHT
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Thread Size 1/2"
Cut Rating High Temp, Stainless Steel
Tool Material Steel
Overall Len 3.9370 100.00MM
Thread Type NF/UNF/UNEF
Thread Limit 2B
Shank/Pilot Dia 0.3670 9.32MM
Tap Chamfer 1.5P-2.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
