  • EMUGE CU396A00.5046 Tap 7/16-20.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P HSS HSSE-Powder Metal TiN

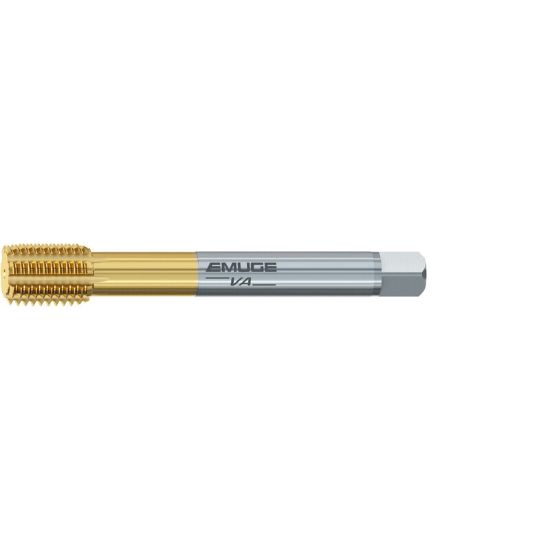

Picture of EMUGE CU396A00.5046 Tap 7/16-20.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P HSS HSSE-Powder Metal TiN

EMUGE CU396A00.5046 Tap 7/16-20.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P HSS HSSE-Powder Metal TiN

ISO: CU396A00.5046

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU396A00.5046
Delivery date: 3-5 days
$118.38

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Blind Hole Tapping, Bottom Tapping, Tapping
Made In USA No
Shipping State Massachusetts
Package Size 1
Coating TiN
Performance Rating High Performance
Dimensional Specifications
Cut Rating High Temp, Stainless Steel
Tool Material Steel
Overall Len 3.9370 100.00MM
Length Type Standard
Tap Type Bottoming
Thread Limit 2B
Thread Size 7/16"
Flute Direction STRAIGHT
Thread Pitch 20.00TPI
Dimension Standard DINSI
Drill Range 0.4118 10.46MM - 0.4185 10.63MM
Tap Style Roll Form
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3230 8.20MM - P
Tap Chamfer 1.5P-2.0P
Thread Type NF/UNF/UNEF
Tap Square 0.2420
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
