  • EMUGE CU396A00.5017 Tap 7/8-9.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P HSSE-Powder Metal TiN

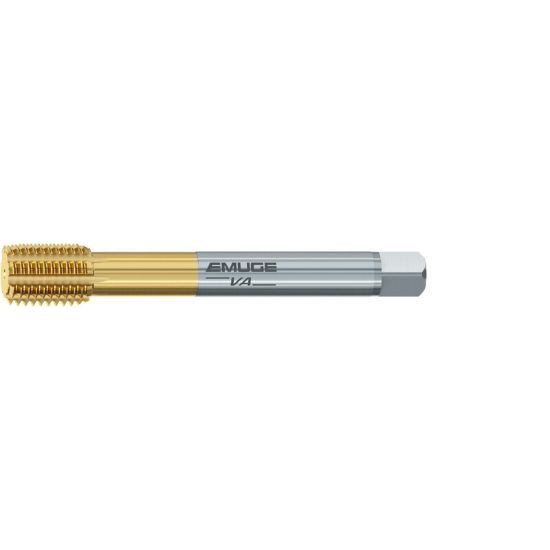

Picture of EMUGE CU396A00.5017 Tap 7/8-9.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P HSSE-Powder Metal TiN

EMUGE CU396A00.5017 Tap 7/8-9.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P HSSE-Powder Metal TiN

ISO: CU396A00.5017

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU396A00.5017
Delivery date: 3-5 days
$344.02

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Roll Form Tapping, Bottom Tapping, Tapping
Coating TiN
Shipping State Massachusetts
Package Size 1
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Limit 2B
Flute Direction STRAIGHT
Shank/Pilot Dia 0.6970 17.70MM
Machine Side Connection Type Tap Collet
Overall Len 5.5120 140.00MM
Tap Chamfer 1.5P-2.0P
Thread Pitch 9.00TPI
Drill Range 0.7547 19.17MM - 0.8331 21.16MM
Tap Square 0.5230
Cut Rating High Temp, Stainless Steel
Tool Material Steel
Thread Type NC/UNC
Dimension Standard DINSI
Tap Style Roll Form
Length Type Standard
Tap Type Bottoming
Thread Size 7/8"
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
