  • EMUGE CU396A00.5015 Tap 5/8-11.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P Cobalt HSSE-Powder Metal TiN

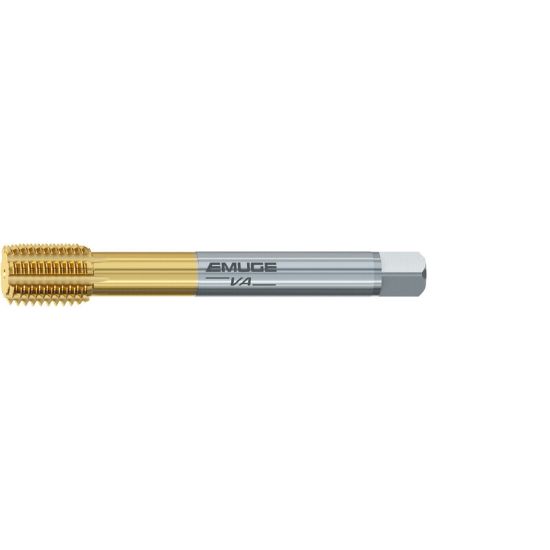

Picture of EMUGE CU396A00.5015 Tap 5/8-11.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P Cobalt HSSE-Powder Metal TiN

EMUGE CU396A00.5015 Tap 5/8-11.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P Cobalt HSSE-Powder Metal TiN

ISO: CU396A00.5015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU396A00.5015
Delivery date: 3-5 days
$193.26

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Shipping State Massachusetts
Package Size 1
Application Bottom Tapping, Roll Form Tapping, Tapping, Blind Hole Tapping
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Cut Rating High Temp, Stainless Steel
Tool Material Steel
Thread Pitch 11.00TPI
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.4800 12.19MM
Tap Chamfer 1.5P-2.0P
Overall Len 4.3310 110.01MM
Tap Square 0.3600
Thread Limit 2B
Drill Range 0.5783 14.69MM - 0.5909 15.01MM
Thread Size 5/8"
Flute Direction STRAIGHT
Thread Type NC/UNC
Dimension Standard DINSI
Length Type Standard
Tap Style Roll Form
Tap Type Bottoming
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Medical Yes
Aerospace Yes
