  • EMUGE CU396A00.5013 Tap 1/2-13.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P Carbide HSSE-Powder Metal TiN

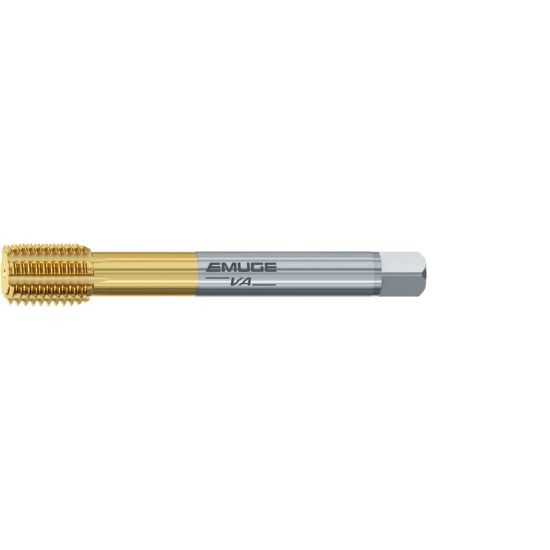

Picture of EMUGE CU396A00.5013 Tap 1/2-13.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P Carbide HSSE-Powder Metal TiN

EMUGE CU396A00.5013 Tap 1/2-13.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P Carbide HSSE-Powder Metal TiN

ISO: CU396A00.5013

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU396A00.5013
Delivery date: 3-5 days
$119.31

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Shipping State Massachusetts
Package Size 1
Application Bottom Tapping, Tapping, Roll Form Tapping, Blind Hole Tapping
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Flute Direction STRAIGHT
Machine Side Connection Type Tap Collet
Drill Range 0.4606 11.70MM - 0.4720 11.99MM
Tap Square 0.2750
Tap Chamfer 1.5P-2.0P
Thread Pitch 13.00TPI
Thread Type NC/UNC
Dimension Standard DINSI
Tap Style Roll Form
Length Type Standard
Tap Type Bottoming
Thread Size 1/2"
Cut Rating High Temp, Stainless Steel
Tool Material Steel
Overall Len 4.3310 110.01MM
Thread Limit 2B
Shank/Pilot Dia 0.3670 9.32MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
