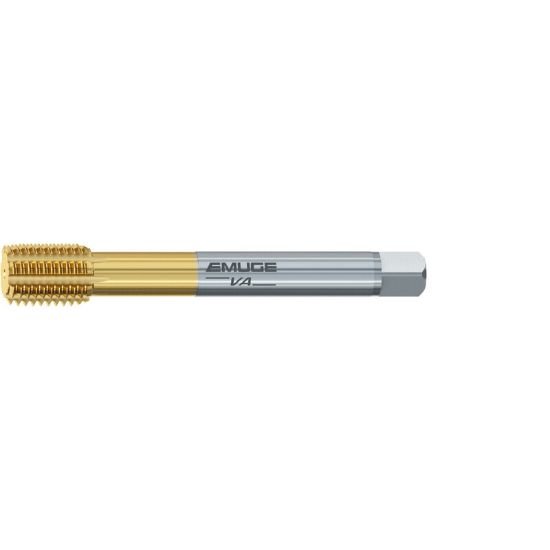

Picture of Emuge CU396A00.5049 Tap 5/8-18.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P Cobalt HSSE-Powder Metal TiN

Emuge CU396A00.5049 Tap 5/8-18.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P Cobalt HSSE-Powder Metal TiN

Part Number: EMUCU396A00.5049 ISO: CU396A00.5049

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157021
Vendor: Sussex Tool and Supply
$196.72
EMUGE CU396A00.5049 5/8"x18.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-PM TiN 2B NF/UNF/UNEF Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, High Temp
Coating TIN
Overall Length 3.9370 100.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4800 12.19MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 18.00TPI
Thread Type NF/UNF/UNEF
Flute Direction STRAIGHT
Thread Size 5/8"
Thread Limit 2B
Tap Style Roll Form
Tap Type Bottoming
Dimension Standard DINSI
Tap Drill Range 0.5965 15.15MM - 0.6039 15.34MM
Tap Square 0.3600
Tap Chamfer 1.5P-2.0P
