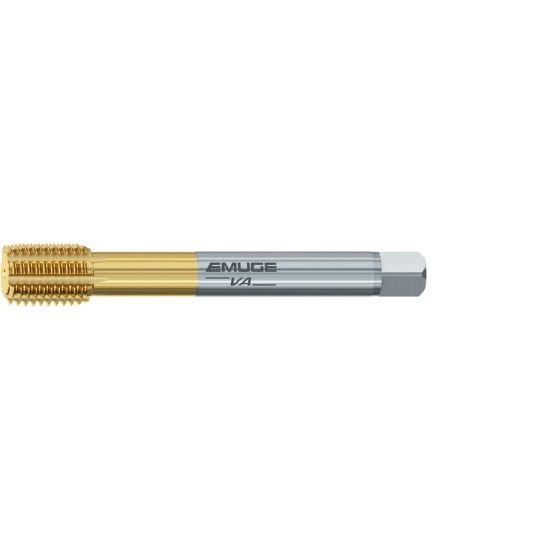

Picture of Emuge CU396A00.5017 Tap 7/8-9.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P HSSE-Powder Metal TiN

Emuge CU396A00.5017 Tap 7/8-9.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P HSSE-Powder Metal TiN

Part Number: EMUCU396A00.5017 ISO: CU396A00.5017
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
7/8" × 9.00TPI Roll Form
% of thread 65%
Target drill —
Drill products available across the % thread range
55% 72.5%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±3% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1157017
Vendor: Sussex Tool and Supply
$404.64

Description

EMUGE CU396A00.5017 7/8"x9.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-PM TiN 2B NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction STRAIGHT
Tap Style Roll Form
Tap Type Bottoming
Tap Chamfer 1.5P-2.0P
Dimensions & Sizing
Overall Length 5.5120 140.00MM
Shank/Pilot Dia 0.6970 17.70MM
Thread Pitch 9.00TPI
Thread Size 7/8"
Tap Drill Range 0.7547 19.17MM - 0.8331 21.16MM
Tap Square 0.5230
Performance & Capacity
Cut Rating Stainless Steel, High Temp
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating TIN
Standards & Identification
Dimension Standard DINSI
