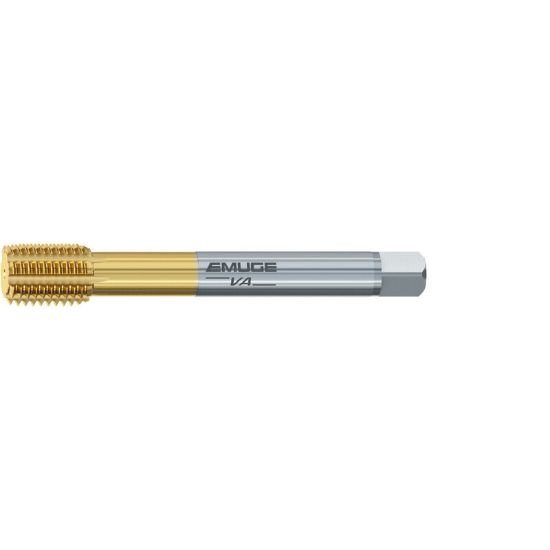

Picture of Emuge CU396A00.5012 Tap 7/16-14.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P Cobalt HSSE-Powder Metal TiN

Emuge CU396A00.5012 Tap 7/16-14.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P Cobalt HSSE-Powder Metal TiN

Part Number: EMUCU396A00.5012 ISO: CU396A00.5012
Looking for alternatives…
Find a drill for this tap 7/16" × 14.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1157012
Vendor: Sussex Tool and Supply
$139.24

Description

EMUGE CU396A00.5012 7/16"x14.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-PM TiN 2B NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction STRAIGHT
Tap Style Roll Form
Tap Type Bottoming
Tap Chamfer 1.5P-2.0P
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.3230 8.20MM - P
Thread Pitch 14.00TPI
Thread Size 7/16"
Tap Drill Range 0.4008 10.18MM - 0.4106 10.43MM
Tap Square 0.2420
Performance & Capacity
Cut Rating Stainless Steel, High Temp
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating TIN
Standards & Identification
Dimension Standard DINSI
