  • EMUGE CU377F00.5050 Tap 3/4-16.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE-Powder Metal TiN

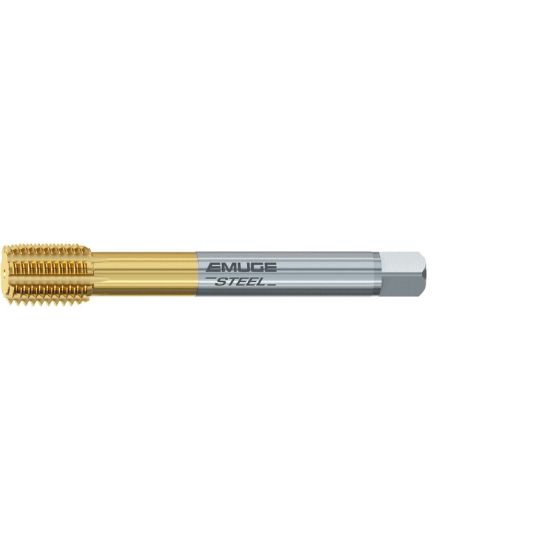

Picture of EMUGE CU377F00.5050 Tap 3/4-16.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE-Powder Metal TiN

EMUGE CU377F00.5050 Tap 3/4-16.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE-Powder Metal TiN

ISO: CU377F00.5050

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU377F00.5050
Delivery date: 3-5 days
$287.12

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Mod Bottom Tapping, Tapping, Roll Form Tapping
Package Size 1
Made In USA No
Shipping State Massachusetts
Coating TiN
Performance Rating High Performance
Dimensional Specifications
Tool Material Steel
Overall Len 4.3310 110.01MM
Thread Limit 2B
Flute Direction STRAIGHT
Thread Pitch 16.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard DINSI
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Drill Range 0.7177 18.23MM - 0.7264 18.45MM
Length Type Standard
Tap Type Mod Bottom
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Tap Square 0.4420
Thread Size 3/4"
Shank/Pilot Dia 0.5900 14.99MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Job Shop Yes
Multi Spindle Yes
Energy Yes
