  • EMUGE CU377F00.5047 Tap 1/2-20.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE-Powder Metal TiN

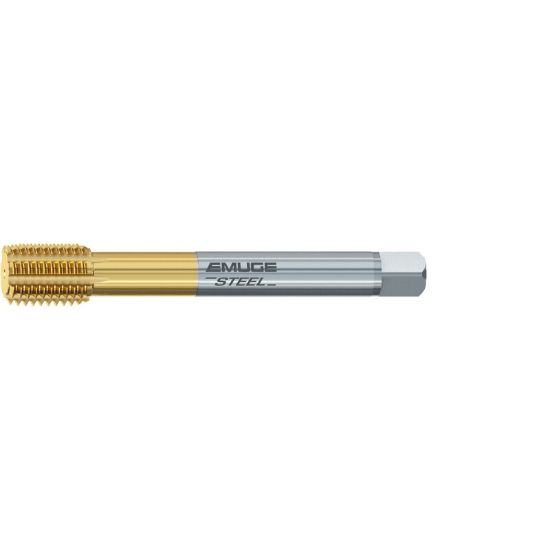

Picture of EMUGE CU377F00.5047 Tap 1/2-20.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE-Powder Metal TiN

EMUGE CU377F00.5047 Tap 1/2-20.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE-Powder Metal TiN

ISO: CU377F00.5047

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU377F00.5047
Delivery date: 3-5 days
$137.20

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Roll Form Tapping, Tapping, Blind Hole Tapping, Mod Bottom Tapping
Coating TiN
Shipping State Massachusetts
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Overall Len 3.9370 100.00MM
Drill Range 0.4744 12.05MM - 0.4811 12.22MM
Length Type Standard
Thread Size 1/2"
Tool Material Steel
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Tap Type Mod Bottom
Flute Direction STRAIGHT
Thread Type NF/UNF/UNEF
Thread Limit 2B
Shank/Pilot Dia 0.3670 9.32MM
Thread Pitch 20.00TPI
Dimension Standard DINSI
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Multi Spindle Yes
Job Shop Yes
Energy Yes
