  • EMUGE CU377F00.5046 Tap 7/16-20.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE-Powder Metal TiN

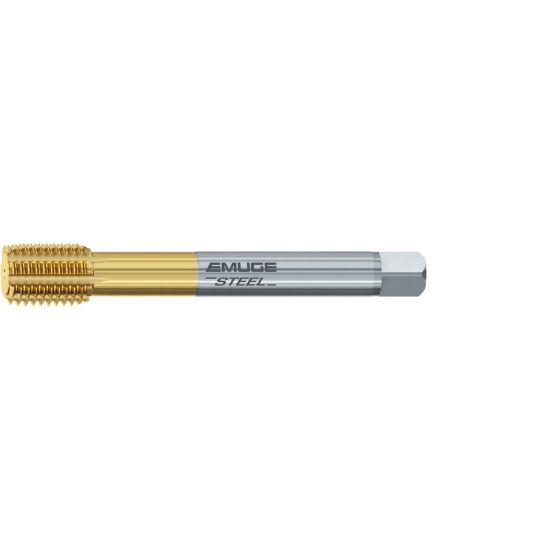

Picture of EMUGE CU377F00.5046 Tap 7/16-20.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE-Powder Metal TiN

EMUGE CU377F00.5046 Tap 7/16-20.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE-Powder Metal TiN

ISO: CU377F00.5046

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU377F00.5046
Delivery date: 3-5 days
$136.02

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Blind Hole Tapping, Mod Bottom Tapping, Tapping
Performance Rating High Performance
Coating TiN
Made In USA No
Package Size 1
Shipping State Massachusetts
Dimensional Specifications
Tap Square 0.2420
Thread Size 7/16"
Machine Side Connection Type Tap Collet
Thread Limit 2B
Flute Direction STRAIGHT
Overall Len 3.9370 100.00MM
Length Type Standard
Tool Material Steel
Thread Pitch 20.00TPI
Dimension Standard DINSI
Drill Range 0.4118 10.46MM - 0.4185 10.63MM
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Cut Rating <40HRC Steel
Shank/Pilot Dia 0.3230 8.20MM - P
Tap Type Mod Bottom
Thread Type NF/UNF/UNEF
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Multi Spindle Yes
Job Shop Yes
Energy Yes
