  • EMUGE CU377F00.5017 Tap 7/8-9.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE-Powder Metal TiN

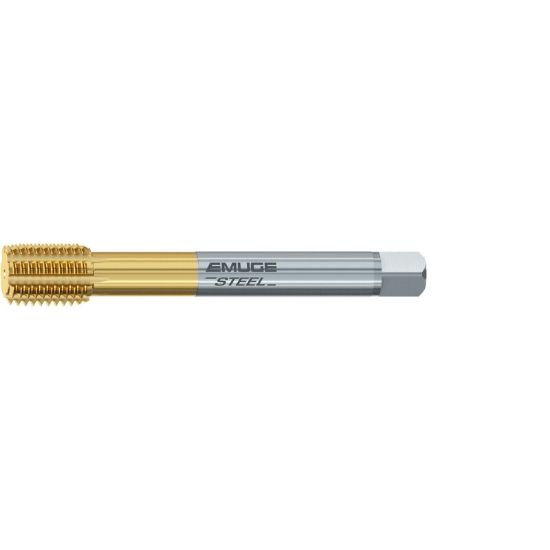

Picture of EMUGE CU377F00.5017 Tap 7/8-9.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE-Powder Metal TiN

EMUGE CU377F00.5017 Tap 7/8-9.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE-Powder Metal TiN

ISO: CU377F00.5017

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU377F00.5017
Delivery date: 3-5 days
$395.61

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Coating TiN
Application Mod Bottom Tapping, Roll Form Tapping, Blind Hole Tapping, Tapping
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Overall Len 5.5120 140.00MM
Tap Chamfer 2.0P-3.0P
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Flute Direction STRAIGHT
Shank/Pilot Dia 0.6970 17.70MM
Tool Material Steel
Thread Size 7/8"
Thread Limit 2B
Thread Pitch 9.00TPI
Drill Range 0.7547 19.17MM - 0.8331 21.16MM
Tap Square 0.5230
Thread Type NC/UNC
Dimension Standard DINSI
Length Type Standard
Tap Style Roll Form
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Energy Yes
Job Shop Yes
Multi Spindle Yes
