  • EMUGE CU377F00.5016 Tap 3/4-10.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE-Powder Metal TiN

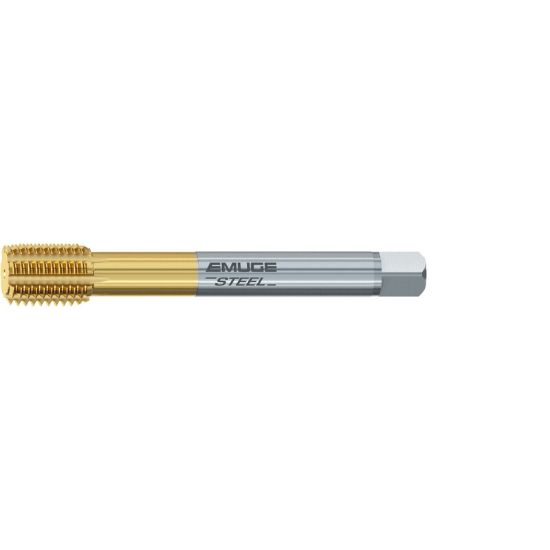

Picture of EMUGE CU377F00.5016 Tap 3/4-10.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE-Powder Metal TiN

EMUGE CU377F00.5016 Tap 3/4-10.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE-Powder Metal TiN

ISO: CU377F00.5016

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU377F00.5016
Delivery date: 3-5 days
$287.12

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Tapping, Blind Hole Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Coating TiN
Made In USA No
Dimensional Specifications
Tool Material Steel
Overall Len 4.9210 124.99MM
Drill Range 0.6988 17.75MM - 0.7126 18.10MM
Thread Size 3/4"
Shank/Pilot Dia 0.5900 14.99MM
Thread Type NC/UNC
Dimension Standard DINSI
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Tap Square 0.4420
Tap Type Mod Bottom
Thread Pitch 10.00TPI
Thread Limit 2B
Flute Direction STRAIGHT
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Energy Yes
Multi Spindle Yes
