  • EMUGE CU377F00.5012 Tap 7/16-14.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE-Powder Metal TiN

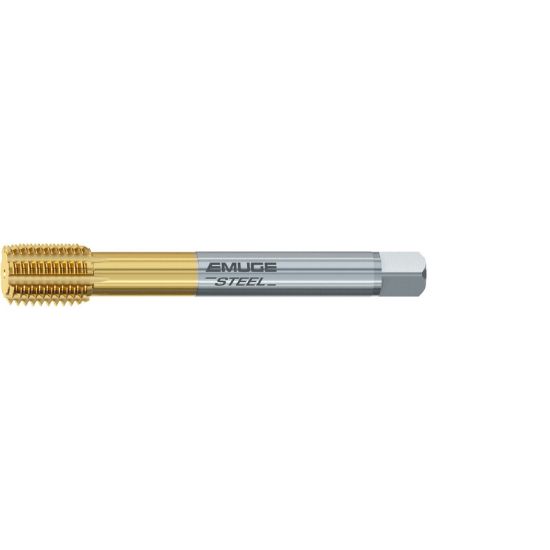

Picture of EMUGE CU377F00.5012 Tap 7/16-14.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE-Powder Metal TiN

EMUGE CU377F00.5012 Tap 7/16-14.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSSE-Powder Metal TiN

ISO: CU377F00.5012

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU377F00.5012
Delivery date: 3-5 days
$136.02

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Tapping, Blind Hole Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Shipping State Massachusetts
Package Size 1
Coating TiN
Dimensional Specifications
Tap Square 0.2420
Thread Pitch 14.00TPI
Thread Limit 2B
Thread Type NC/UNC
Length Type Standard
Dimension Standard DINSI
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Thread Size 7/16"
Flute Direction STRAIGHT
Drill Range 0.4008 10.18MM - 0.4106 10.43MM
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3230 8.20MM - P
Tap Type Mod Bottom
Tool Material Steel
Overall Len 3.9370 100.00MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Multi Spindle Yes
Energy Yes
Job Shop Yes
