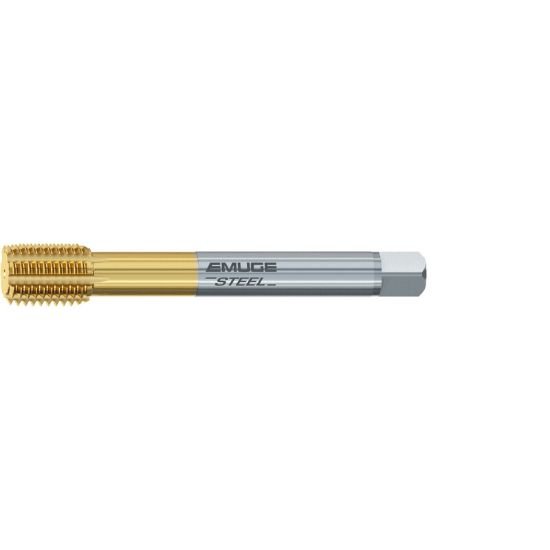

Picture of Emuge CU377F00.5047 Tap 1/2-20.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE-Powder Metal TiN

Emuge CU377F00.5047 Tap 1/2-20.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE-Powder Metal TiN

Part Number: EMUCU377F00.5047 ISO: CU377F00.5047
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$161.37
SKU: 1157055

Description

EMUGE CU377F00.5047 1/2"x20.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-PM TiN 2B NF/UNF/UNEF Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction STRAIGHT
Tap Style Roll Form
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.3670 9.32MM
Thread Pitch 20.00TPI
Thread Size 1/2"
Tap Drill Range 0.4744 12.05MM - 0.4811 12.22MM
Tap Square 0.2750
Performance & Capacity
Cut Rating <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating TIN
Standards & Identification
Dimension Standard DINSI
