  • EMUGE CU35J411.5046 Tap 7/16-20.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P Cobalt HSSE-Powder Metal TiCN

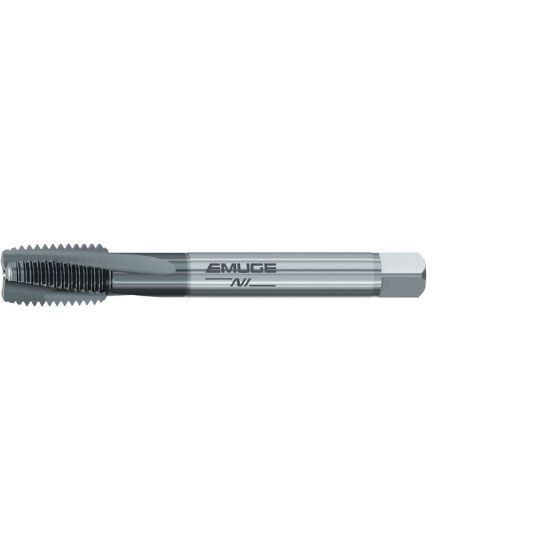

Picture of EMUGE CU35J411.5046 Tap 7/16-20.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P Cobalt HSSE-Powder Metal TiCN

EMUGE CU35J411.5046 Tap 7/16-20.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P Cobalt HSSE-Powder Metal TiCN

ISO: CU35J411.5046

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU35J411.5046
Delivery date: 3-5 days
$132.41

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Application Tapping, Mod Bottom Tapping, Cut Tapping
Performance Rating High Performance
Coating TiCN
Shipping State Massachusetts
Dimensional Specifications
Thread Size 7/16"
Machine Side Connection Type Tap Collet
Flute Direction R - Right
Overall Len 3.9370 100.00MM
Length Type Standard
Thread Pitch 20.00TPI
Dimension Standard DINSI
Tap Chamfer 2.0P-3.0P
Thread Type NF/UNF/UNEF
Drill Range 0.3854 9.79MM - 0.3984 10.12MM
Tap Square 0.2420
Thread Limit 3B
Cut Rating High Temp, Inconel, Titanium
Flutes/Inserts 3
Tool Material Steel
Shank/Pilot Dia 0.3230 8.20MM - P
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
