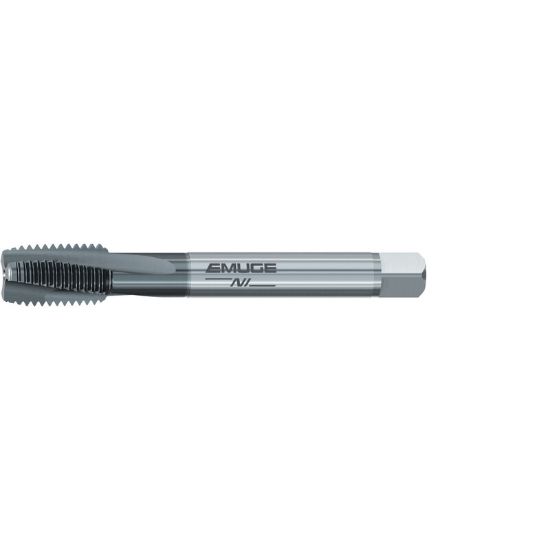

EMUGE CU35J411.5015 Tap 5/8-11.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Cobalt HSSE-Powder Metal TiCN

ISO: CU35J411.5015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU35J411.5015
Delivery date: 3-5 days
$210.71

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Mod Bottom Tapping, Cut Tapping, Tapping
Coating TiCN
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Overall Len 4.3310 110.01MM
Drill Range 0.5303 13.47MM - 0.5539 14.07MM
Tap Square 0.3600
Tool Material Steel
Thread Type NC/UNC
Flute Direction R - Right
Dimension Standard DINSI
Length Type Standard
Thread Limit 3B
Cut Rating High Temp, Inconel, Titanium
Thread Size 5/8"
Shank/Pilot Dia 0.4800 12.19MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Pitch 11.00TPI
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
