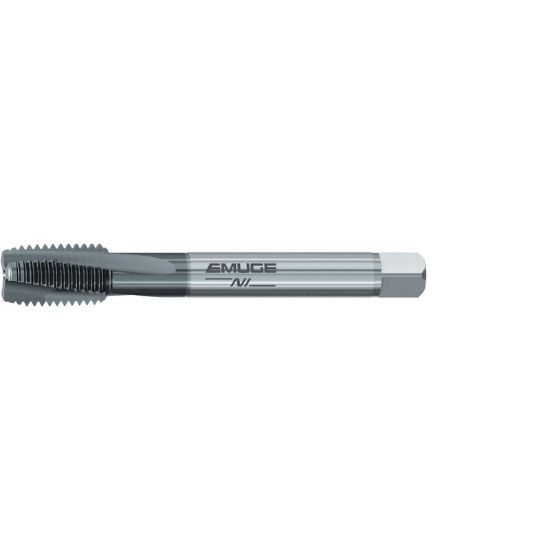

EMUGE CU35J411.5014 Tap 9/16-12.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSS HSSE-Powder Metal TiCN

ISO: CU35J411.5014

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU35J411.5014
Delivery date: 3-5 days
$187.18

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Coating TiCN
Shipping State Massachusetts
Package Size 1
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Limit 3B
Cut Rating High Temp, Inconel, Titanium
Drill Range 0.4756 12.08MM - 0.4972 12.63MM
Tap Square 0.3220
Thread Pitch 12.00TPI
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Size 9/16"
Overall Len 4.3310 110.01MM
Flutes/Inserts 3
Tool Material Steel
Shank/Pilot Dia 0.4290 10.90MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Type NC/UNC
Flute Direction R - Right
Dimension Standard DINSI
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
