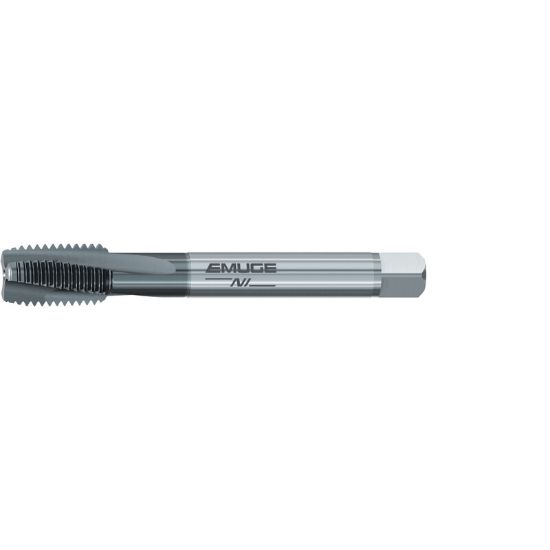

EMUGE CU35J411.5013 Tap 1/2-13.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Cobalt HSSE-Powder Metal TiCN

ISO: CU35J411.5013

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU35J411.5013
Delivery date: 3-5 days
$129.73

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN
Shipping State Massachusetts
Made In USA No
Application Mod Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Size 1/2"
Tool Material Steel
Flute Direction R - Right
Length Type Standard
Thread Limit 3B
Cut Rating High Temp, Inconel, Titanium
Shank/Pilot Dia 0.3670 9.32MM
Drill Range 0.4201 10.67MM - 0.4398 11.17MM
Overall Len 4.3310 110.01MM
Flutes/Inserts 3
Thread Pitch 13.00TPI
Thread Type NC/UNC
Dimension Standard DINSI
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
