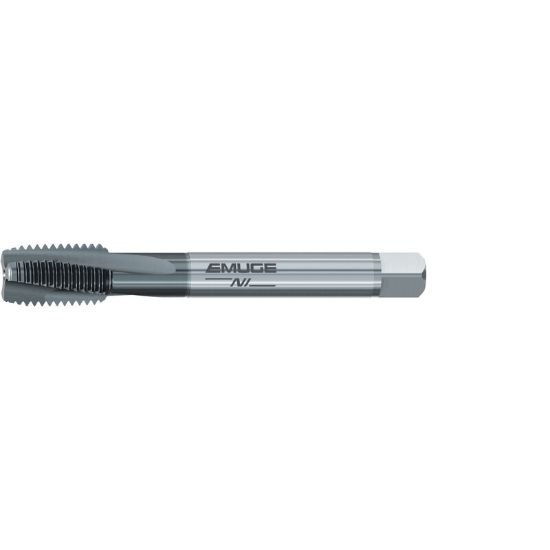

Picture of Emuge CU35J411.5016 Tap 3/4-10 TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSS HSSE-Powder Metal TiCN

Emuge CU35J411.5016 Tap 3/4-10 TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P HSS HSSE-Powder Metal TiCN

Part Number: EMUCU35J411.5016 ISO: CU35J411.5016
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$321.24
SKU: 1157826

Description

EMUGE CU35J411.5016 3/4"x10 TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-PM TiCN 3B NC/UNC
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 4.9210 124.99MM
Shank/Pilot Dia 0.5900 14.99MM
Flutes/Inserts 3
Thread Pitch 10.00TPI
Thread Size 3/4"
Tap Drill Range 0.6461 16.41MM - 0.6720 17.07MM
Tap Square 0.4420
Performance & Capacity
Cut Rating High Temp, Inconel, Titanium
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 3B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating TICN
Standards & Identification
Dimension Standard DINSI
