  • EMUGE CU263701.5046 Tap 7/16-20.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Carbide HSSE TiN

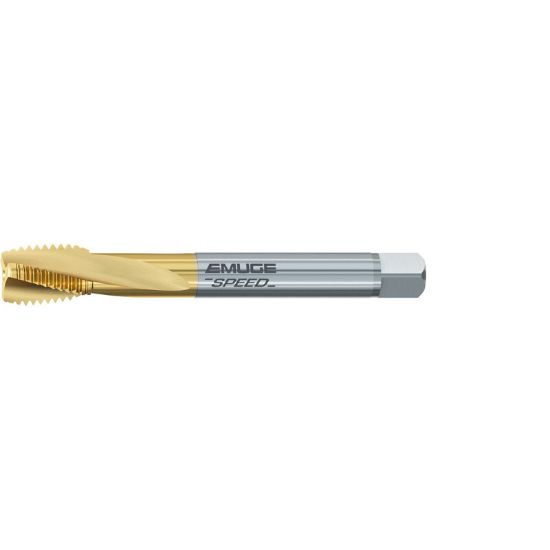

Picture of EMUGE CU263701.5046 Tap 7/16-20.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Carbide HSSE TiN

EMUGE CU263701.5046 Tap 7/16-20.00TPI Mod Bottom NC/UNC DINSI 2.0P-3.0P Carbide HSSE TiN

ISO: CU263701.5046

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU263701.5046
Delivery date: 3-5 days
$103.51

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Tapping, Cut Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Coating TiN
Dimensional Specifications
Flute Direction R - Right
Overall Len 3.9370 100.00MM
Length Type Standard
Flutes/Inserts 3
Drill Range 0.3854 9.79MM - 0.3984 10.12MM
Tap Square 0.2420
Shank/Pilot Dia 0.3230 8.20MM - P
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Pitch 20.00TPI
Thread Type NC/UNC
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Tap Chamfer 2.0P-3.0P
Thread Size 7/16"
Machine Side Connection Type Tap Collet
Thread Limit 2B
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
