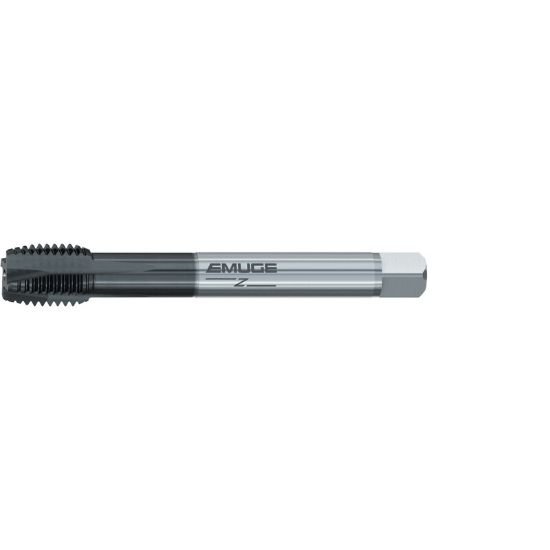

Picture of Emuge CU20A600.5668 Tap 5/8-11.00TPI Plug LK-UNC DINSI 4P-5P Cobalt HSSE-Powder Metal GLT-1

Emuge CU20A600.5668 Tap 5/8-11.00TPI Plug LK-UNC DINSI 4P-5P Cobalt HSSE-Powder Metal GLT-1

Part Number: EMUCU20A600.5668 ISO: CU20A600.5668

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158592
Vendor: Sussex Tool and Supply
$210.05
EMUGE CU20A600.5668 5/8"x11.00TPI Spiral Lock Plug 4P-5P HSSE-PM GLT-1 BT LK-UNC Steel GLT-1 - Hard surface coating with anti-friction layer In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating GLT-1
Overall Length 4.3310 110.01MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4800 12.19MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 11.00TPI
Thread Type LK-UNC
Flute Direction STRAIGHT
Thread Size 5/8"
Thread Limit BT
Tap Style Spiral Lock
Tap Type Plug
Dimension Standard DINSI
Tap Drill Range 0.5512 14.00MM
Tap Square 0.3600
Tap Chamfer 4P-5P
