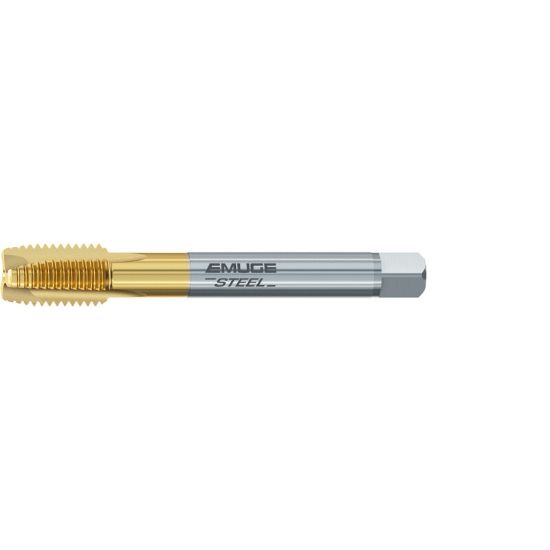

EMUGE CU208400.5019 Tap 1-1/8-7.00TPI Plug NC/UNC DINSI 4P-5P HSS HSSE TiN

ISO: CU208400.5019

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU208400.5019
Delivery date: 3-5 days
$386.90

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Through Hole Tapping, Plug Tapping, Cut Tapping, Tapping
Made In USA No
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Size 1-1/8"
Machine Side Connection Type Tap Collet
Overall Len 7.0870 180.01MM
Tap Style Cut Spiral Point
Tool Material Steel
Tap Chamfer 4P-5P
Thread Type NC/UNC
Dimension Standard DINSI
Length Type Standard
Thread Pitch 7.00TPI
Thread Limit 2B
Flute Direction STRAIGHT
Cut Rating <42HRC Steel, Stainless Steel
Tap Square 0.6720
Tap Type Plug
Flutes/Inserts 3
Drill Range 0.9697 24.63MM - 1.0134 25.74MM
Shank/Pilot Dia 0.8960 22.76MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
