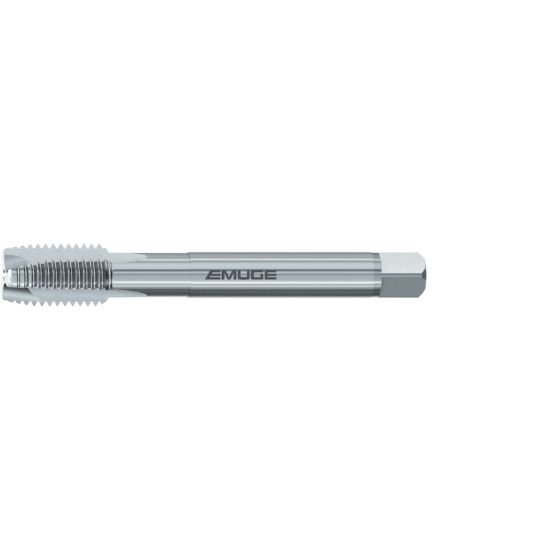

EMUGE CU206511.5050 Tap 3/4-16.00TPI Plug NF/UNF/UNEF DINSI 4P-5P HSSE Nitride

ISO: CU206511.5050

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU206511.5050
Delivery date: 3-5 days
$188.18

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Tapping, Plug Tapping, Through Hole Tapping
Performance Rating High Performance
Coating Nitride
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Dimension Standard DINSI
Flutes/Inserts 4
Length Type Standard
Thread Size 3/4"
Thread Type NF/UNF/UNEF
Shank/Pilot Dia 0.5900 14.99MM
Overall Len 4.3310 110.01MM
Drill Range 0.6850 17.40MM - 0.7012 17.81MM
Tap Chamfer 4P-5P
Machine Side Connection Type Tap Collet
Tap Square 0.4420
Tap Style Cut Spiral Point
Flute Direction STRAIGHT
Tap Type Plug
Thread Pitch 16.00TPI
Thread Limit 3B
Cut Rating High Temp, Inconel, Titanium
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
