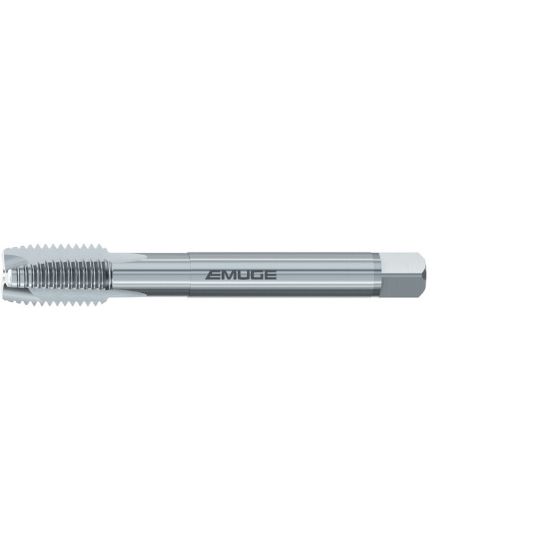

EMUGE CU206511.5049 Tap 5/8-18.00TPI Plug NF/UNF/UNEF DINSI 4P-5P Cobalt HSSE Nitride

ISO: CU206511.5049

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU206511.5049
Delivery date: 3-5 days
$143.48

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Coating Nitride
Dimensional Specifications
Flutes/Inserts 3
Tap Square 0.3600
Thread Pitch 18.00TPI
Shank/Pilot Dia 0.4800 12.19MM
Dimension Standard DINSI
Length Type Standard
Thread Limit 3B
Cut Rating High Temp, Inconel, Titanium
Tap Type Plug
Thread Type NF/UNF/UNEF
Thread Size 5/8"
Flute Direction STRAIGHT
Drill Range 0.5669 14.40MM - 0.5815 14.77MM
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Tool Material Steel
Overall Len 3.9370 100.00MM
Tap Chamfer 4P-5P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
