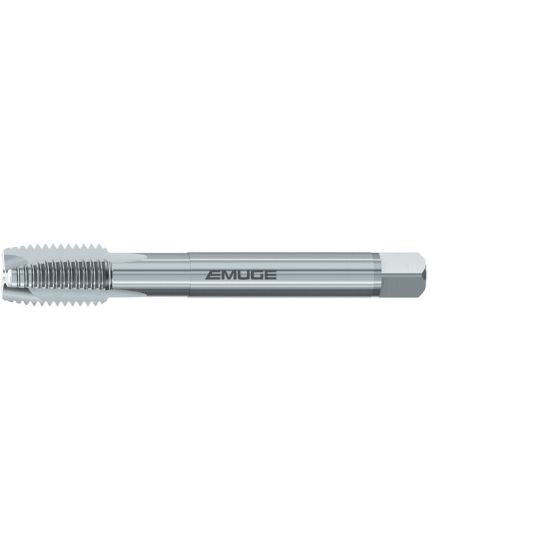

EMUGE CU206511.5015 Tap 5/8-11.00TPI Plug NC/UNC DINSI 4P-5P Carbide HSSE Nitride

ISO: CU206511.5015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUCU206511.5015
Delivery date: 3-5 days
$140.56

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating High Performance
Made In USA No
Coating Nitride
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Type NC/UNC
Dimension Standard DINSI
Length Type Standard
Tool Material Steel
Tap Chamfer 4P-5P
Thread Size 5/8"
Flute Direction STRAIGHT
Thread Limit 3B
Cut Rating High Temp, Inconel, Titanium
Tap Type Plug
Thread Pitch 11.00TPI
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Shank/Pilot Dia 0.4800 12.19MM
Overall Len 4.3310 110.01MM
Flutes/Inserts 3
Drill Range 0.5303 13.47MM - 0.5539 14.07MM
Tap Square 0.3600
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
