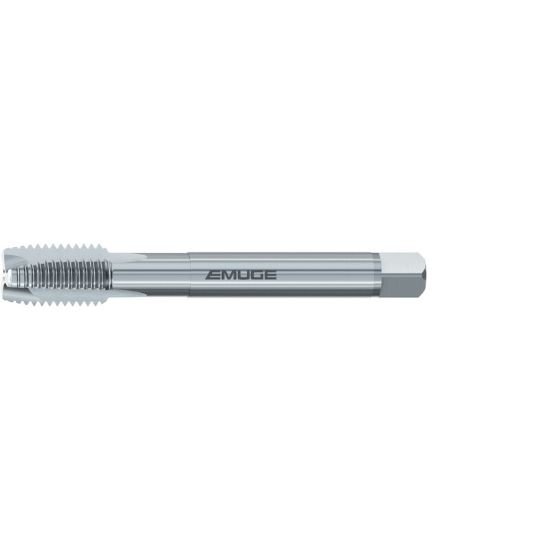

Picture of Emuge CU206511.5049 Tap 5/8-18.00TPI Plug NF/UNF/UNEF DINSI 4P-5P Cobalt HSSE Nitride

Emuge CU206511.5049 Tap 5/8-18.00TPI Plug NF/UNF/UNEF DINSI 4P-5P Cobalt HSSE Nitride

Part Number: EMUCU206511.5049 ISO: CU206511.5049
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1155877
Vendor: Sussex Tool and Supply
$168.76

Description

EMUGE CU206511.5049 5/8"x18.00TPI Cut Spiral Point Plug 4P-5P HSSE Nitride 3B NF/UNF/UNEF Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction STRAIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4P-5P
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.4800 12.19MM
Flutes/Inserts 3
Thread Pitch 18.00TPI
Thread Size 5/8"
Tap Drill Range 0.5669 14.40MM - 0.5815 14.77MM
Tap Square 0.3600
Performance & Capacity
Cut Rating High Temp, Inconel, Titanium
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 3B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating Nitride
Standards & Identification
Dimension Standard DINSI
