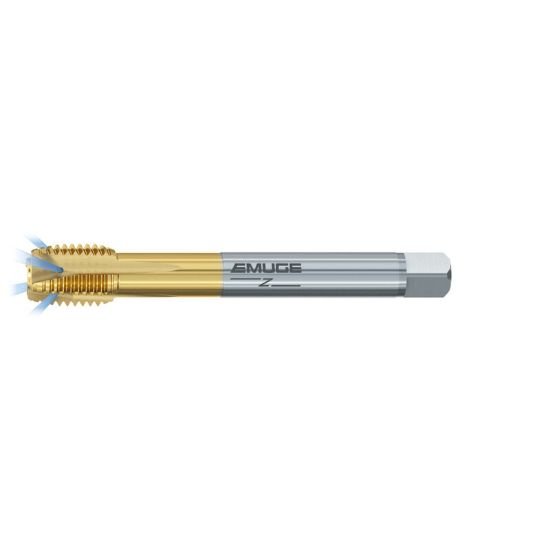

Picture of Emuge CU088F01.5048 Tap 9/16-18.00TPI Plug NF/UNF/UNEF DINSI 4P-5P Coolant Cobalt HSSE-Powder Metal TiN

Emuge CU088F01.5048 Tap 9/16-18.00TPI Plug NF/UNF/UNEF DINSI 4P-5P Coolant Cobalt HSSE-Powder Metal TiN

Part Number: EMUCU088F01.5048 ISO: CU088F01.5048

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1156210
Vendor: Sussex Tool and Supply
$203.08
EMUGE CU088F01.5048 9/16"x18.00TPI Cut Spiral Point Plug 4P-5P HSSE-PM TiN 2B NF/UNF/UNEF Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Coating TIN
Overall Length 3.9370 100.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.4290 10.90MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 18.00TPI
Thread Type NF/UNF/UNEF
Flute Direction STRAIGHT
Thread Size 9/16"
Thread Limit 2B
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard DINSI
Tap Drill Range 0.5047 12.82MM - 0.5189 13.18MM
Tap Square 0.3220
Tap Chamfer 4P-5P
