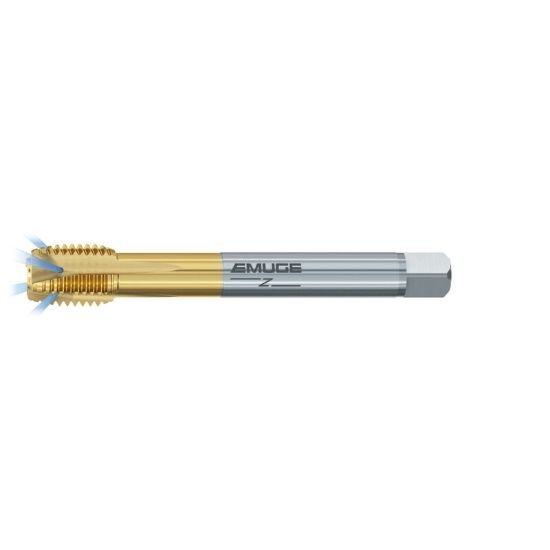

Picture of Emuge CU088F01.5013 Tap 1/2-13.00TPI Plug NC/UNC DINSI 4P-5P Coolant Carbide HSSE-Powder Metal TiN

Emuge CU088F01.5013 Tap 1/2-13.00TPI Plug NC/UNC DINSI 4P-5P Coolant Carbide HSSE-Powder Metal TiN

Part Number: EMUCU088F01.5013 ISO: CU088F01.5013

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1156204
Vendor: Sussex Tool and Supply
$159.20
EMUGE CU088F01.5013 1/2"x13.00TPI Cut Spiral Point Plug 4P-5P HSSE-PM TiN 2B NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Coating TIN
Overall Length 4.3310 110.01MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3670 9.32MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 13.00TPI
Thread Type NC/UNC
Flute Direction STRAIGHT
Thread Size 1/2"
Thread Limit 2B
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard DINSI
Tap Drill Range 0.4201 10.67MM - 0.4398 11.17MM
Tap Square 0.2750
Tap Chamfer 4P-5P
