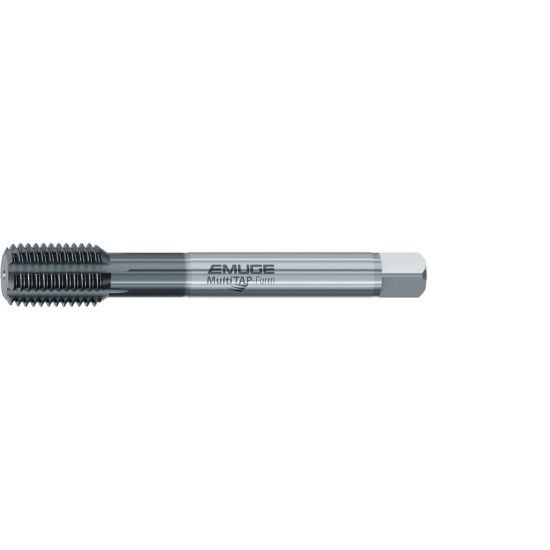

Picture of Emuge CU039010.5013 Tap 1/2-13.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P HSSE TiCN

Emuge CU039010.5013 Tap 1/2-13.00TPI Bottoming NC/UNC DINSI 1.5P-2.0P HSSE TiCN

Part Number: EMUCU039010.5013 ISO: CU039010.5013

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157744
Vendor: Sussex Tool and Supply
$62.64
EMUGE CU039010.5013 1/2"x13.00TPI Roll Form Bottoming 1.5P-2.0P HSSE TiCN 2B/3B NC/UNC Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating <40HRC Steel
Coating TICN
Overall Length 4.3310 110.01MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3670 9.32MM
Flutes/Inserts 5
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 13.00TPI
Thread Type NC/UNC
Flute Direction STRAIGHT
Thread Size 1/2"
Thread Limit 2B/3B
Tap Style Roll Form
Tap Type Bottoming
Dimension Standard DINSI
Tap Drill Range 0.4606 11.70MM - 0.4720 11.99MM
Tap Square 0.2750
Tap Chamfer 1.5P-2.0P
