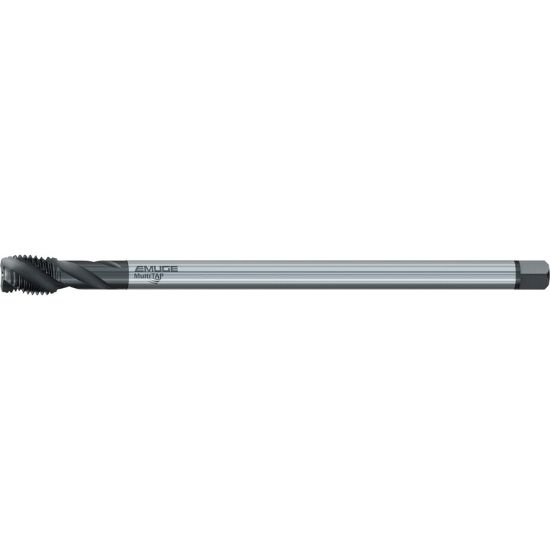

EMUGE C5863200.0112 Tap Mod Bottom M12-1.75MM 6H Metric DIN/DIN HSSE Oxide + TiN

ISO: C5863200.0112

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC5863200.0112
Delivery date: 3-5 days
$180.65

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating Oxide + TiN
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Tap Type Mod Bottom
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Size M12
Drill Range 0.4008 10.18MM - 0.4189 10.64MM
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.3540 8.99MM
Flutes/Inserts 3
Thread Type Metric
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Overall Len 8.8189 224.00MM
Thread Pitch 1.75MM
Flute Direction R - Right
Length Type Long
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
